Removing panoramic roof cover

Preliminary work

• Refer to REMOVING SEAL FOR THE PANORAMIC ROOF INSIDE .

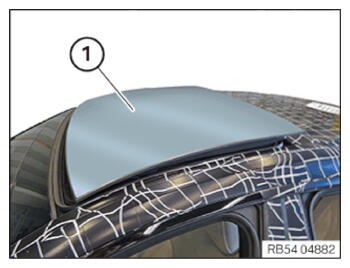

• Open panorama roof cover (1) and move to the position shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Damage to the panorama glass roof or the mechanics of the panorama glass roof  .
  Any screws or foreign objects remaining at the installation location or in the component may damage the panorama glass roof  .

  • Ensure that no screws or other foreign objects are left behind.

  Courtesy of BMW OF NORTH AMERICA, INC.

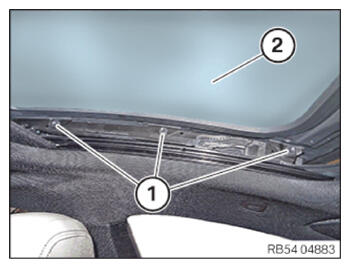

• Loosen the screws (1) left/right.
• Remove the panorama glass roof panel (2).
