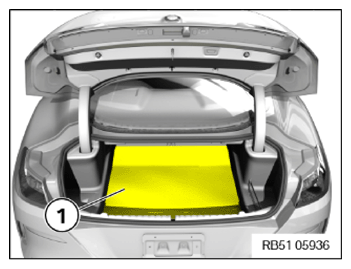

Remove luggage compartment floor covering

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
G15651230Courtesy of BMW OF NORTH AMERICA, INC.
