Installing the right ventilation grille
NOTE:
Description is for left component only. Procedure on the right side is identical.

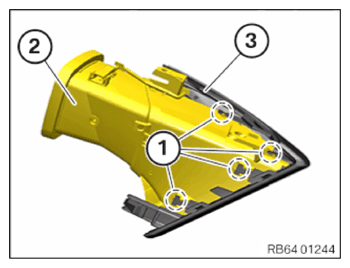

- Place the ventilation grille (2) on the decorative strip (3) and position it correctly.
- Engage the detents (1) at the ventilation grille (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

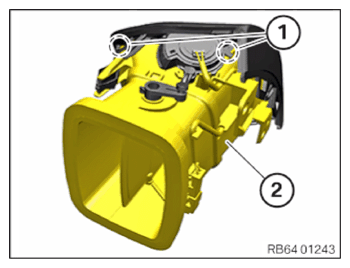

- Engage the detents (1) at the ventilation grille (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
