Installing the center engine compartment cover

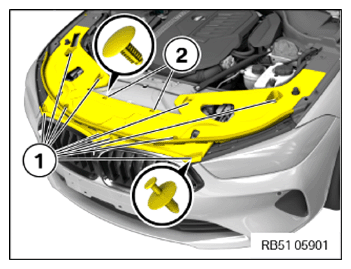

Position the cover in the center engine compartment.
Clip in clips (2).
Secure expanding rivet (1).

G15651486

Courtesy of BMW OF NORTH AMERICA, INC.
