Install the cover of the steering assembly
NOTE:

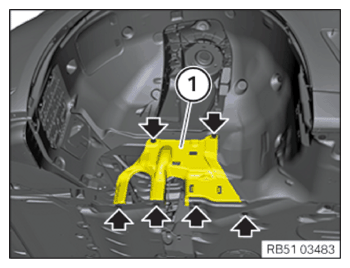

To provide a better overview: Schematic diagram with partially hidden components.
- Insert the cover (1).
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Cover, steering unit |
| screw |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
