Install tension strut on shock tower
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

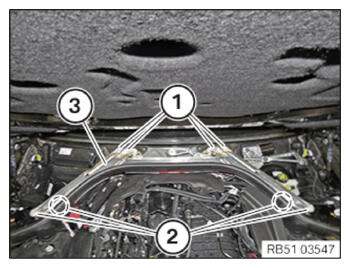

- Install the tension strut (3) on the shock tower.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Tension strut on firewall M10x25 screw
Replace screwsTightening torque 56 Nm Angle of rotation 90° - Replace screws (2).
Parts: Screws
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Tension strut to shock tower | ||
|---|---|---|
| screw Replace screws. |
Joining torque | 56 Nm |
| Angle of rotation | 90° | |
Repairing the thread on the strut tower
- Repair the damaged thread with the Helicoil thread insert.
CONSUMABLE SPECIFICATION
| Helicoil thread insert | M10x25 mm | 33 30 6 782 756 |
Follow-up work
- Refer to ATTACHING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
