Installing the front-end strut

Installing the front-end strut

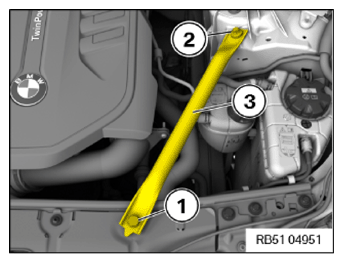

• Install the front-end strut (3).
  NOTE: RISK OF DAMAGE
  Use of an incorrect tool (impact screwdriver) to release and tighten the screws  .
  Damaged thread  .

  • Only use a standard tool (e.g. reversible ratchet) to release/tighten the screws.
• Clean the thread at shock tower.
• Replace screws (1) and (2).

  Parts:  Screws

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Front-end strut to cross connection
  Hexagon screw Replace screw.	Tightening torque	28 Nm
  	Angle of rotation	90°

• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Front-end strut on wheel well
  Hexagon screw Replace screw.	Tightening torque	56 Nm
  	Angle of rotation	90°

• Repair the damaged thread on the shock tower with a Helicoil insert.

Courtesy of BMW OF NORTH AMERICA, INC.
