Install upper cross connection

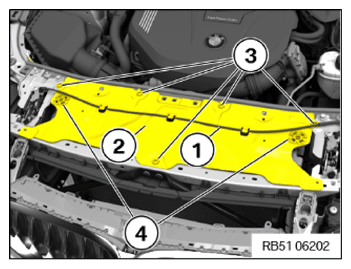

• Position upper cross connection (2) with holders (4).
• Tighten down screws (3).
  TIGHTENING TORQUES SPECIFICATION



  Top cross connection to rear top cross-connection
  Combination clamping screw with ISA	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach Bowden cable (1) in the upper cross connection (2).

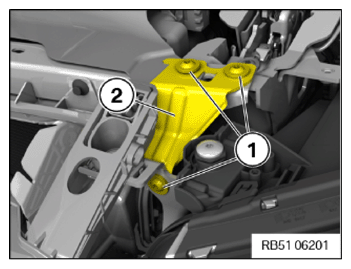

• Guide in support (2) of the upper air flap control and position.
• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BOTH FRONT-END STRUTS .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
