Install front cross connection

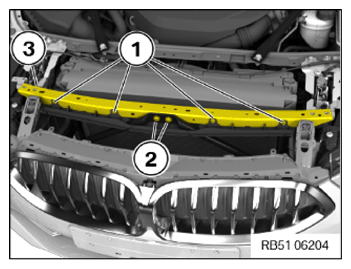

• Insert and position front cross connection (3) from above.
• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Reinforcement strut on the front cross connection and bumper bracket
  Oval-head screw	tightening torque	19 Nm

• Secure expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING BOTH FRONT-END STRUTS .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
