Installing the tailgate trim panel

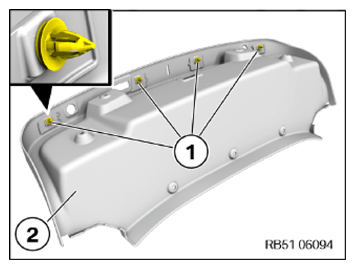

• Check the clips (1) tailgate trim panel (2) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

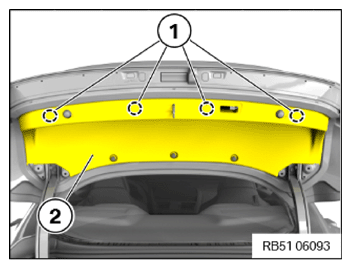

• Position the tailgate trim panel (2) and secure with expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

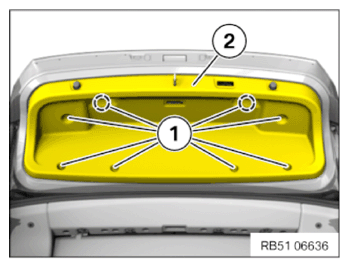

• Clip in the tailgate trim panel (2) with the clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE POWER TAILGATE SWITCH .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
