Installing the damping layer on the hood

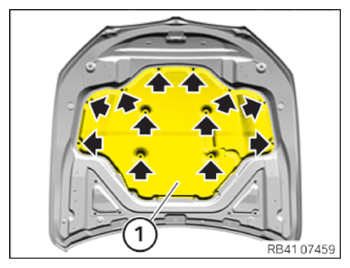

Correctly position the damping layer (1) and mount all clips (arrows).

G15651341

Courtesy of BMW OF NORTH AMERICA, INC.
