Installing loading edge trim

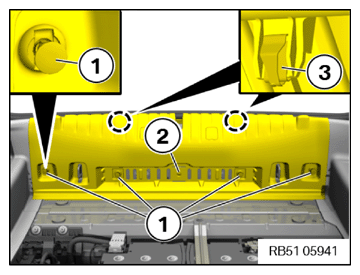

• Check clamps (1) for damage and, if necessary, replace them.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed the loading edge trim under the sealing lip of the trunk lid seal.
• Fit the trim of the loading edge at the detents (3) and clip it in to the bottom.
• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Loading edge trim to body
  Oval-head screw with collar M4	Tightening torque	3 Nm

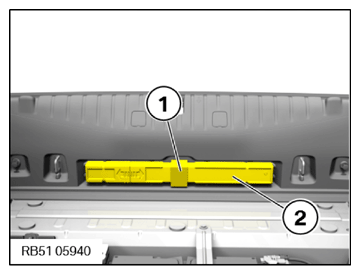

• Secure expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert warning triangle (2) and fix it with hook and loop tape (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up works

• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
