Luggage compartment wheel arch trim panel

Preliminary work

• Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING THE LOADING EDGE TRIM .

Precondition

The rear seat backrest is folded down toward the front.

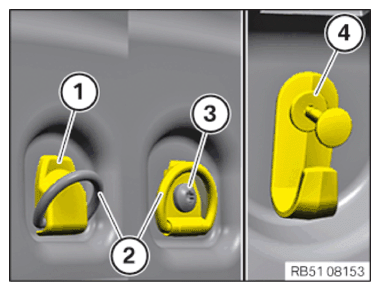

• Unclip covers (1) of lashing eyes (2).
• Release screws (3) of lashing eyes (2).
• Open expanding rivet (4) of bag hook.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen the expanding rivet (1).
• G16, F93:

  Release expanding rivet (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release hinge cover (1) from the luggage compartment wheel arch trim panel (2) and leave it hanging on the hinge bracket.
• Feed out the luggage compartment wheel arch trim panel (2) from under the sealing lip of the tailgate seal.
• Feed luggage compartment wheel arch trim panel (2) out of side trim panel in rear passenger compartment and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
