Installing luggage compartment wheel arch trim panel

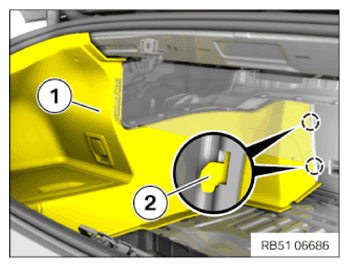

• Insert the luggage compartment wheel arch trim panel (1) and feed it into the front guides (2).
• Feed in the luggage compartment wheel arch trim panel (1) in the rear area below the sealing lip of the tailgate seal.

  Courtesy of BMW OF NORTH AMERICA, INC.

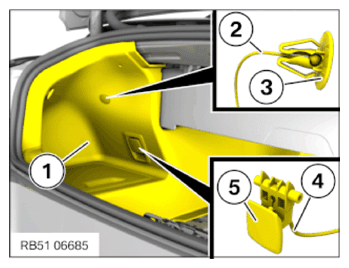

• Attach the Bowden cable (4).
• Install the backrest remote unlocking (5) in the luggage compartment wheel arch trim panel (1).
• Hook the Bowden cable (2) and clip in the emergency unlocking (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

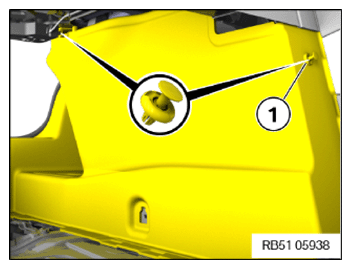

• Secure expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

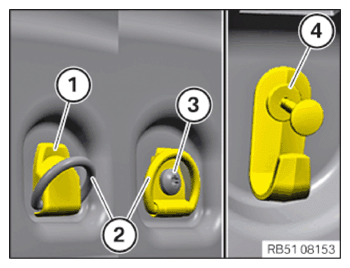

• Secure the multifunction hook with the expanding rivet (4).
• Tighten screws (3) of lashing eyes (2).
  TIGHTENING TORQUES SPECIFICATION



  Lashing point to body
  M8 screw	Tightening torque	19 Nm

• Clip in covers (1) of lashing eyes (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
