Remove the front sill trim
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
NOTE:
RISK OF DAMAGE
Bending of plastic components .
Application of too much force can lead to bending of plastic components .
Bending of plastic components .
Application of too much force can lead to bending of plastic components .
- Place special tool directly beside the mounting clip.
- Continue unclipping the part without using the tool if possible.

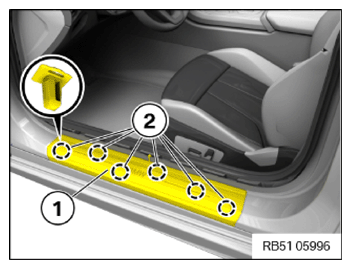

- Release and remove the front sill trim (1) with the special tool 0 496 569 (00 9 325) at the clips (2).

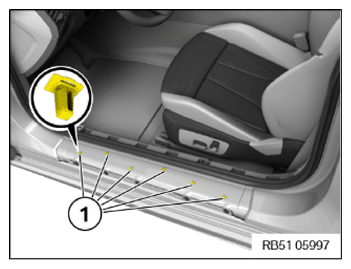

- Remove clips (1) if necessary and place on the front sill trim.
