Removing the trim panel for pedal assembly

Preliminary work

• Refer to REMOVING THE FOOTWELL LIGHT AT THE FRONT LEFT OR RIGHT .
• Refer to REMOVING EMERGENCY LOUDSPEAKER .

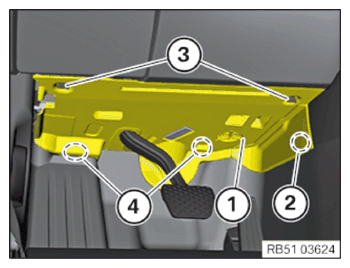

• Version A:
• Feed out the trim panel for pedal assembly (1) inwards in area (2).
• Turn the locks (3) by 90°.
• Detach the trim panel for pedal assembly (1) to the rear from the guides (4).
• Unlock associated plug connection and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

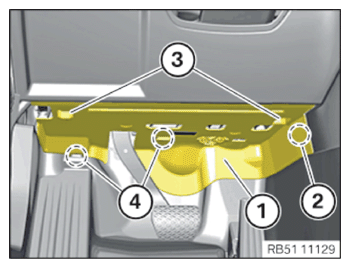

• Version B:
• Feed out the trim panel for pedal assembly (1) inwards in area (2).
• Release screws (3).
• Detach the trim panel for pedal assembly (1) to the rear from the guides (4).
• Unlock associated plug connection and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
