Installing the trim panel for the pedal assembly

• Version A:
• Connect associated connector.

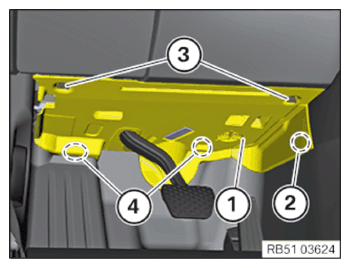

• Hook the trim panel for pedal assembly (1) in the guides (4) and fold it upwards.
• Clip in the trim panel for pedal assembly (1) in the area (2) in the center console.
  NOTE: TECHNICAL INFORMATION
  The screw caps of the trim panel must be  correctly locked in place. This is the only way to ensure that the trim panel does not loosen and, as a result, tilt into the pedal area.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert screw caps (3) correctly and turn 90° to lock.
• Version B:

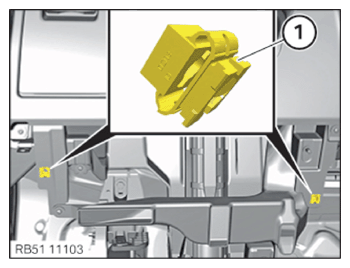

• When replacing a trim panel for pedal assembly with snap fastener  Replace the previously used plastic nuts (1) on the support for the instrument panel with sheet metal nuts.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the trim panel (1).
• Connect respective connectors and lock.

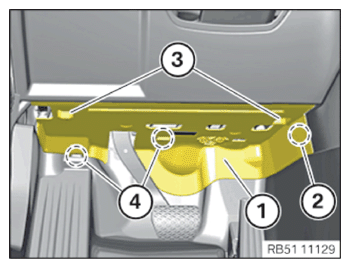

• Hook the trim panel (1) in the guides (4) and fold it upwards.
• Insert the trim panel (1) in area (2) in the center console.
• Tighten the screws (3).
