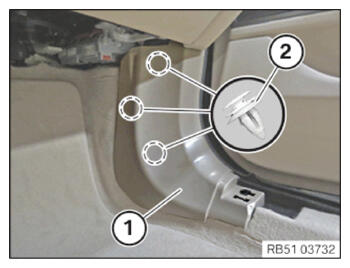

Installing side trim panel in footwell on right A-pillar
- Check the clips (2) for damage and replace if necessary.
- Position the side trim panel (1) and engage it in the clips (2).
- Make sure that the side trim panel (1) is correctly fitted against edge protection.
Follow-up work
- Refer to INSTALLING INSIDE RIGHT DOOR SILL COVER STRIP .
- Refer to INSTALLING THE FOOTWELL TRIM PANEL ON THE RIGHT .
