Installing mid-range speaker at the rear of the side trim panel

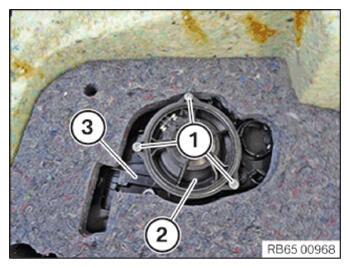

• Insert the mid-range speaker (2) into the side panel (3) and position it correctly.
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Loudspeaker on the door/trim panel
  Screw	tightening torque	2 Nm

• If necessary, position the acoustic fleece correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR TRIM PANEL .
• Refer to INSTALLING THE SEAT BELT FINISHER STRIP .
• Refer to ATTACHING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
