Installing the front module bracket

Check

• Check seal (1) of the front module bracket for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

The seal (1) of the front module bracket is damaged.

Measure

• Replace the front module bracket.

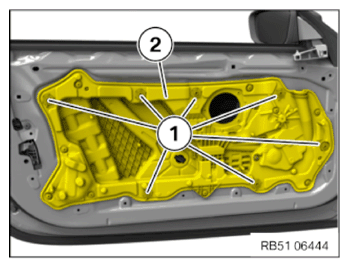

• Install the front module bracket (2).
• Lock the bayonet closures (1) by rotating them.

  Courtesy of BMW OF NORTH AMERICA, INC.

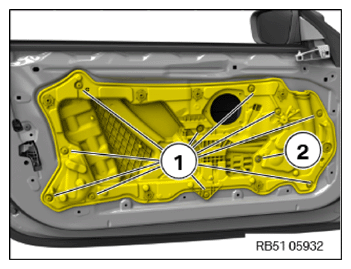

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Module bracket on inner door panel
  Oval-head screw M6	tightening torque	9 Nm

• Tighten nut (2).
  TIGHTENING TORQUES SPECIFICATION



  Module bracket on power window
  Hexagon nut	tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

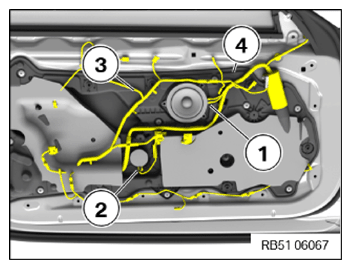

• Clip in the detents of the door wiring harness (3) on the front module bracket (4).
• Connect connectors (1) and (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
