Remove the windshield

NOTE: TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .

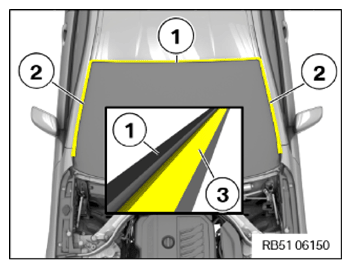

NOTE: The windshield rubber frame (1) is taped to both A-pillars (2).
Remove double-sided tape (3) on the windshield rubber frame (1) from the body.
Before installing the windshield, remove adhesive residue from the body and clean the adhesive area.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Protect the body in the area of the penetration point with a yellow plastic adhesive tape from damage.
CONSUMABLE SPECIFICATION

Yellow plastic adhesive tape 83199410979

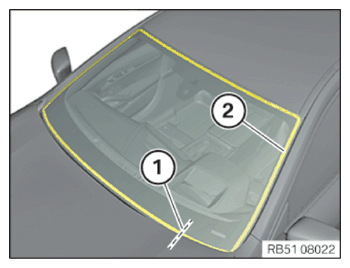

Push the thread (1) through the adhesive bead (2) along the line from the inside.
Cut out the windshield with the spider.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

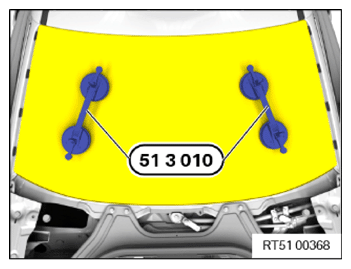

Remove windshield with the special tool 0 492 609 (51 3 010) .

Courtesy of BMW OF NORTH AMERICA, INC.
