Prepare windshield

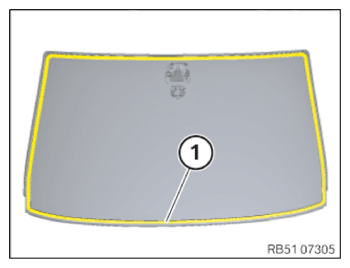

- Clean the windshield in the area of the adhesive bead (1).CONSUMABLE SPECIFICATION
Cleaning agent R2 500ml 83190417324 - After cleaning, allow to air out.TECHNICAL DATA SPECIFICATION
Air drying time after cleaning Window glass or painted panel without residual adhesive bead 5 min Body with adhesive bead 15 min - Only remove the residual adhesive bead (1) from the windshield shortly before bonding with the standard tool.

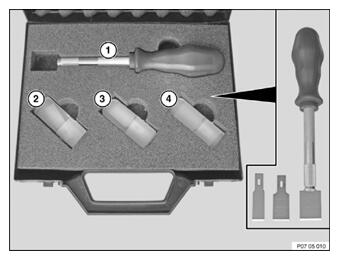

Standard tool:
Pinchweld scraper set
81 62 0 410 436
NOTE: TECHNICAL INFORMATION

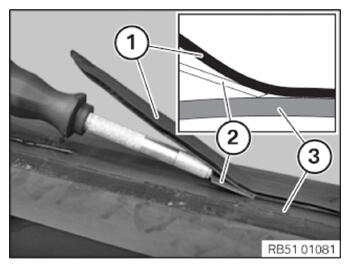

Do not touch the adhesive bead after cutting or allow it to come into contact with cleaning agents. - Apply the pinchweld scraper as shown and cut back the adhesive bead (1).
TECHNICAL DATA SPECIFICATION
| Residual height of the adhesive bead | ||
|---|---|---|
| Residual height of the adhesive bead | max. 1 mm | |
