Prepare installation
- Protect the vehicle interior against contamination.

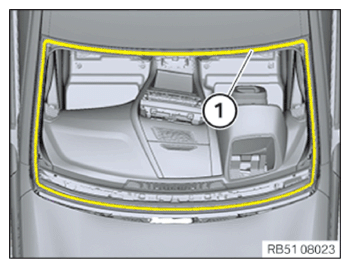

- Clean body aperture (1)
with adhesive bead.CONSUMABLE SPECIFICATION
Cleaning agent R2 500ml 83190417324 - Clean the painted metal surfaces without the adhesive bead.CONSUMABLE SPECIFICATION
Cleaning agent R1 100ml, Bottle 83192211217 - After cleaning, allow to air out.TECHNICAL DATA SPECIFICATION
Air drying time after cleaning Window glass or painted panel without residual adhesive bead 5 min Body with adhesive bead 15 min - Shortly before adhesion with the standard tool, remove adhesive bead (1)
on the body aperture.

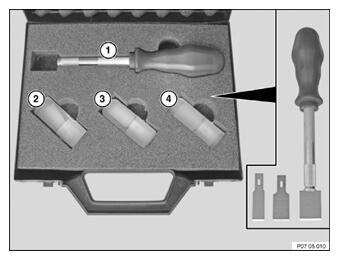

Standard tool:
Pinchweld scraper set
81 62 0 410 436
NOTE: TECHNICAL INFORMATION

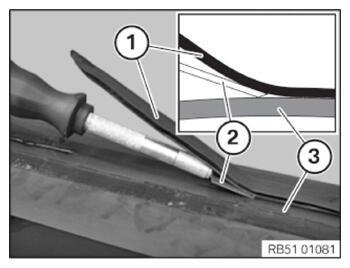

Do not touch the adhesive bead after cutting or allow it to come into contact with cleaning agents. - Apply the pinchweld scraper as shown and cut back the adhesive bead (1)
.TECHNICAL DATA SPECIFICATION
Residual height of the adhesive bead Residual height of the adhesive bead max. 1 mm - Be sure to touch up paintwork damage.
- Sand large-scale damage down to the bare metal and coat.
TECHNICAL DATA SPECIFICATION
| HS-AM multi-base filler VOC | ||
|---|---|---|
| Layer thickness | 30 μm... 40 μm | |
| Hardening time with infrared | 10 min | |
| Hardening time without infrared 60°C | 30 min | |
| Hardening time without infrared 20°C | 1 Tag | |
