Attaching rear model designation
CAUTION:
Laser beam
.
Injury hazard!
Injury hazard!
- Do not look into the laser beam.
- Park the vehicle and the special tool 2 407 566 on a flat and even surface.
- Mount the laser on the tripod.
- Switch on laser (Position without automatic level).
- Activate laser horizontally and vertically.
- Place special tool behind the vehicle and center.
- Align vertical laser beam (A) according to specified dimension.
TECHNICAL DATA SPECIFICATION
| Left model designation to trunk lid | |
|---|---|
| Dimension A from corner of the trunk lid | 71 mm |

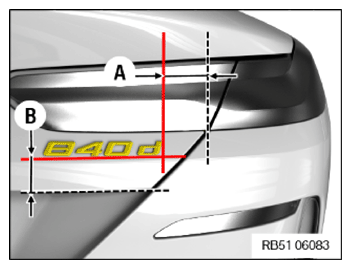

- Align horizontal laser beam (B) according to specified dimension.
TECHNICAL DATA SPECIFICATION
| Left model designation to trunk lid | |
|---|---|
| Dimension B from lower edge of trunk lid | 48 mm |
- Clean the adhesive area with cleaning agent R2.
CONSUMABLE SPECIFICATION
| Cleaning agent R2 | 500 ml | 83190417324 |
- Adhere to the air drying time of 2 min.
- Detach liner from adhesive strip of left model designation.
- Align left model designation to the laser beams as shown, position on trunk lid and press on.
- Position special tool behind vehicle.
- Align vertical laser beam (A) according to specified dimension.
TECHNICAL DATA SPECIFICATION
| Right model designation to trunk lid | |
|---|---|
| Dimension A from corner of the trunk lid | 64 mm |

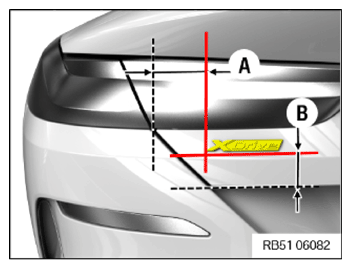

- Align the horizontal laser beam (B) according to the predefined dimension.
TECHNICAL DATA SPECIFICATION
| Right model designation to trunk lid | |
|---|---|
| Dimension B from lower edge of trunk lid | 47 mm |
- Clean the adhesive area with cleaning agent R2.
CONSUMABLE SPECIFICATION
| Cleaning agent R2 | 500 ml | 83190417324 |
- Adhere to the air drying time of 2 min.
- Detach liner from adhesive strip of right model designation.
- Align right model designation to the laser beams as shown, position on trunk lid and press on.
Parts: Model designation
