Installing the trunk lid handle

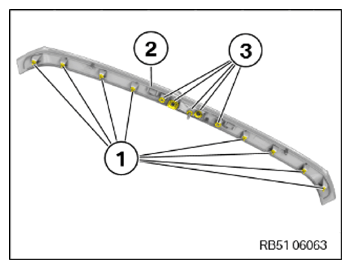

• Check the clips (1) on the trunk lid handle (2) for damage and replace if necessary.
• Check the seals (3) on the trunk lid handle (2) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

If installed: Connecting and locking connector (additional work with rearview camera)

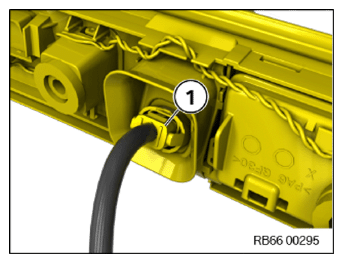

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (3) and lock.

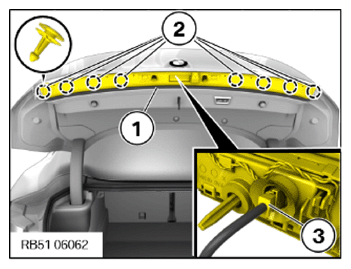

• Fit the trunk lid handle (1) and clip it in with the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

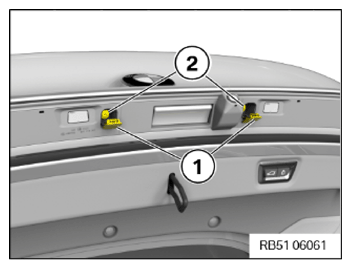

• Tighten screws (2).

• Close covers (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE WATER SUPPLY TO THE REAR LEFT AND RIGHT LIGHT .
