Remove the trim from the side panel
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
NOTE:
Description is for left component only. Procedure on the right side is identical.

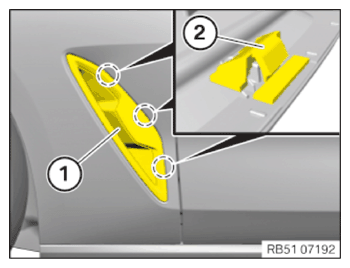

- Carefully release the trim (1) at the side panel from the clamps (2) using the special tool 0 493 681 (64 1 020) and feed out of the side panel to the rear .
