Install exhaust cover

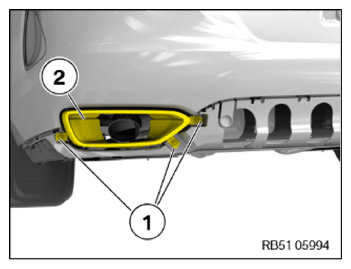

- Install exhaust cover (2).
Align the exhaust cover (2) in the opening of bumper panel at the center .
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Exhaust cover to adapter | ||
|---|---|---|
| Hexagon screw for thermoplastic | Tightening torque | 3 Nm |
Follow-up work
- Refer to INSTALLING THE REAR BUMPER TRIM .
- Refer to INSTALLING THE REAR DIFFUSER .
