Installing the rear diffuser
- Position the rear diffuser.
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Diffuser to rear bumper | ||
|---|---|---|
| Plastic hexagon screw | Tightening torque | 3 Nm |

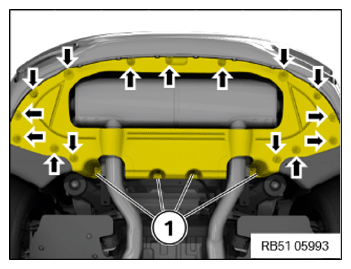

- Tighten nuts (1).
TIGHTENING TORQUES SPECIFICATION
| Diffuser to heat insulation for rear silencer | ||
|---|---|---|
| Plastic nut with flange | Tightening torque | 3 Nm |
- Version B:
Guide in and install diffuser (2).
Tighten the nuts (1) and screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Diffuser/undershield | ||
|---|---|---|
| Nuts and screws | Tightening torque | 3 Nm |
