Installing the rear bumper trim
NOTE:
Perform the steps on the right and left side.

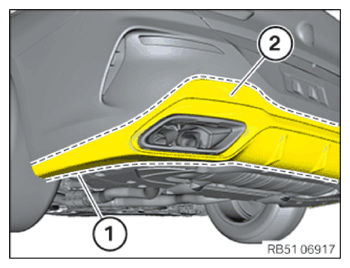

- Check if all the detents of the rear bumper trim (2) are present and damaged and, if necessary, replace the rear bumper trim (2).
- Clip in the rear bumper trim (2) along the dashed line on the detents.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Rear bumper trim to undershield | ||
|---|---|---|
| Screw | tightening torque | 3 Nm |
Follow-up work
- Refer to INSTALLING THE REAR DIFFUSER .
