Installing the electrical spindle drive for the tailgate
NOTE:
TECHNICAL INFORMATION
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: REMOVING/INSTALLING BALL SOCKETS WITH CLIP .
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: REMOVING/INSTALLING BALL SOCKETS WITH CLIP .

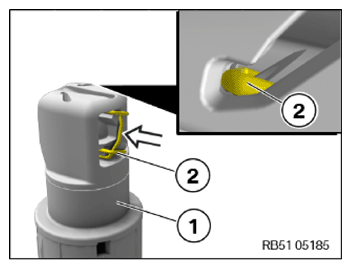

- Before installing the electrical spindle drive (1) for the tailgate, make sure that the retaining spring (2) is in its initial position.
- Check the retaining spring (2) for damage; if necessary, replace the electrical spindle drive (1) for the tailgate.

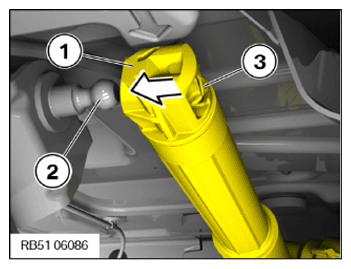

- Press the ball socket (1) in the arrow direction onto the ball hub (2) until the retaining spring (3) snaps in correctly and audibly.

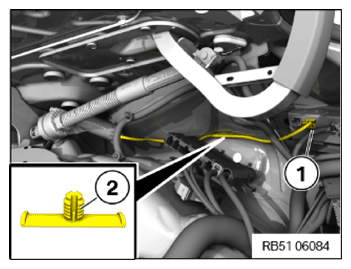

- Clip in the cable bracket (2).
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
