Removing the nozzle chain

Preliminary work

• Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .

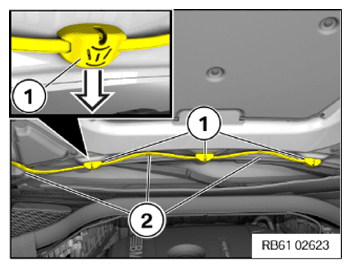

• Unclip the spray nozzles (1) in the arrow direction.
• Unclip the jet chain from all the holders (2) on the hood.

  Courtesy of BMW OF NORTH AMERICA, INC.

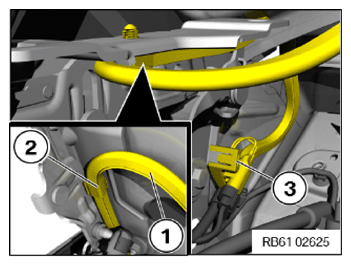

• Unclip jet chain (1) from the holder (2) on the hood hinge.
• Unclip holder (3) from engine compartment lid hinge.

  Courtesy of BMW OF NORTH AMERICA, INC.

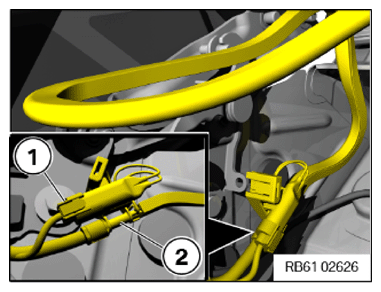

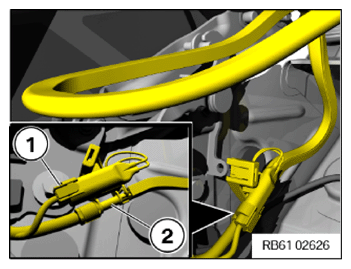

• Unlock and disconnect connector (1).
• Unlock and disconnect nozzle chain (2).
• Thread out jet chain (2) with the access line.

Courtesy of BMW OF NORTH AMERICA, INC.
