Installing the nozzle chain

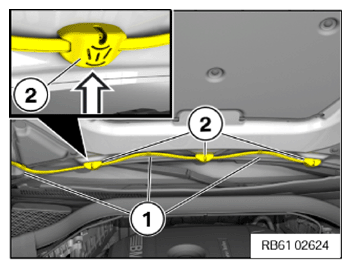

• Clip in the spray nozzles (2) to the top in the direction of the arrow.
• Clip jet chain into the holders (1) on the hood.

  Courtesy of BMW OF NORTH AMERICA, INC.

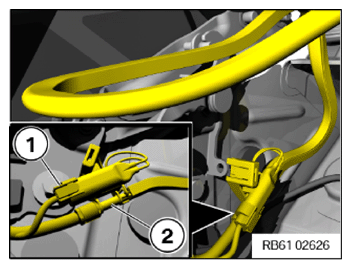

• Feed in the jet chain (2) with the access line.
• Connect plug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

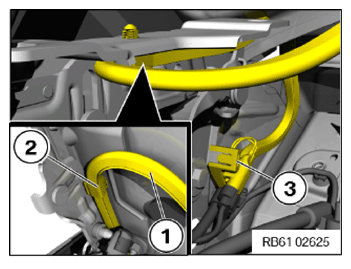

• Clip the jet chain (1) into the holder (2) on the hood hinge.
• Clip in the holder (3) on the hood hinge.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
