Remove the BDC control unit

Preliminary work

• Refer to WHEN REPLACING THE BDC: OBSERVE THE HANDLING RULES FOR THE BMW DIGITAL KEY AND THE KEY CARD .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING FOOTWELL TRIM PANEL ON THE RIGHT .
• Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
• Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE RIGHT-HAND A-PILLAR .

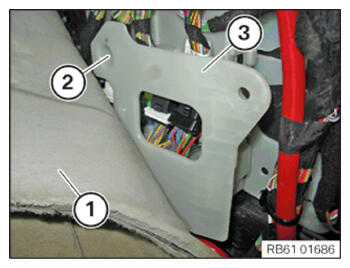

• Fold the carpet (1) to the side.
• Release screw (2) the cover (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

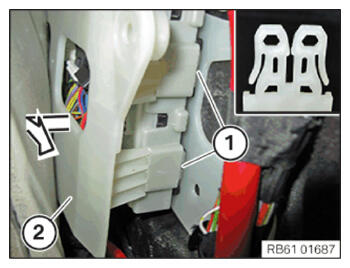

• Loosen the detents (1).
• Guide cover (2) out in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

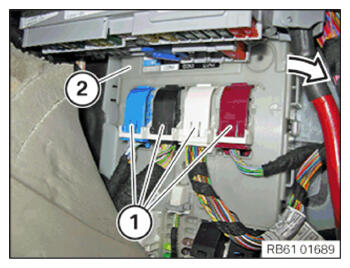

• Unlock and disconnect all connectors (1).
• Swivel the BDC control unit (2) slightly in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

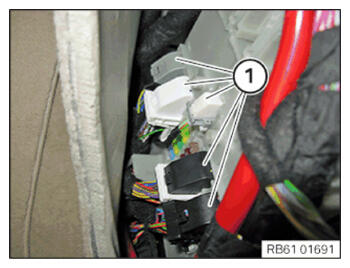

• Unlock and disconnect all connectors (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

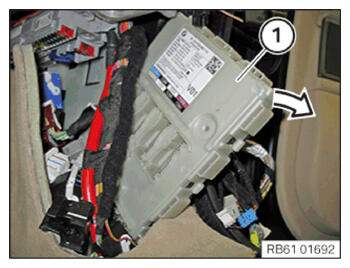

• Guide out the BDC control unit (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

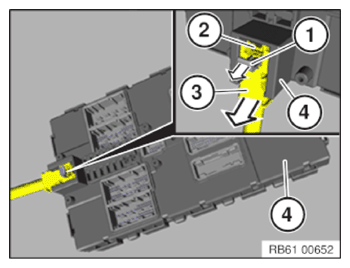

• Unlock and disconnect the connector of the positive battery cable (3) on the BDC control unit (4).

  It is essential to observe the sequence:

  1. Release lock (1) arrow direction.
  2. Disengage the detent (2) on positive battery cable connector (3).
  3. Remove the connector of the positive battery cable (3) in arrow direction.
