Install the control unit for the power tailgate (HKL)

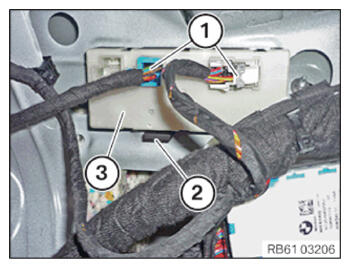

- Correctly position the control unit for the power tailgate (3) and engage it with the detent (2).
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
- Correctly position the control unit for the power tailgate (3) and engage it with the detent (2).
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING TRUNK COMPARTMENT LIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
