Remove the control unit for the power tailgate
Preliminary work
- Refer to DEACTIVATING ON-BOARD NETWORK .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING LED IN THE LUGGAGE COMPARTMENT ON THE RIGHT .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .

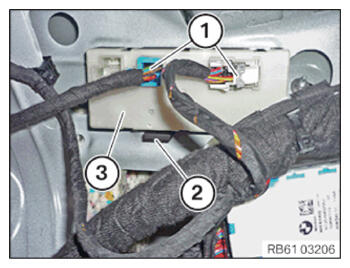

- Unlock and disconnect plug connections (1).
- Unlock the detent (2) and remove the control unit for the power tailgate (3).
