Installing the control unit for self-locking differential

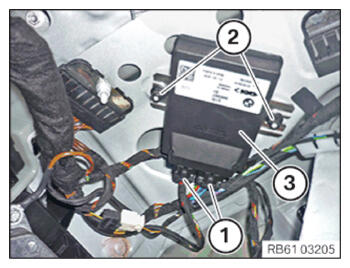

- Position the control unit for the self-locking differential (3) and tighten the nuts (2).TIGHTENING TORQUES SPECIFICATION
Control unit for self-locking differential Plastic nut with flange tightening torque 2.6 Nm - Connect plug (1).

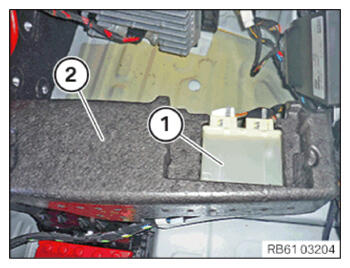

- Install the shaped part (2).
- Install the Personal Digital Communication control unit (1).
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Position the control unit for the self-locking differential (3) and tighten the nuts (2).TIGHTENING TORQUES SPECIFICATION
Control unit for self-locking differential Plastic nut with flange tightening torque 2.6 Nm - Connect plug (1).
- Install the shaped part (2).
- Install the Personal Digital Communication control unit (1).
Follow-up work
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING TRUNK COMPARTMENT LIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
