Removing control unit for self-locking differential
Preliminary work
- Refer to DEACTIVATING ON-BOARD NETWORK .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING LED IN THE LUGGAGE COMPARTMENT ON THE RIGHT .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .

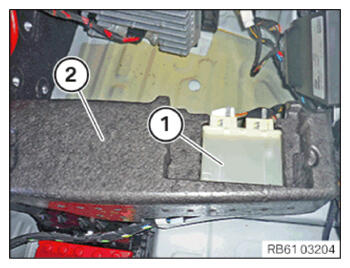

- Remove the PDC control unit (1) and set it aside.
- Remove the shaped part (2).

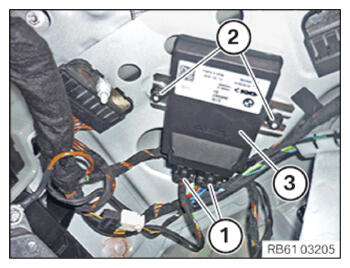

- Unlock and disconnect connector (1).
- Unscrew the nuts (2) and remove the control unit for electronic differential lock (3).
