Installing the control unit for the contact detection

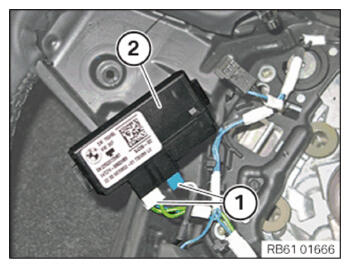

• Connect both connectors (1) to the control unit (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

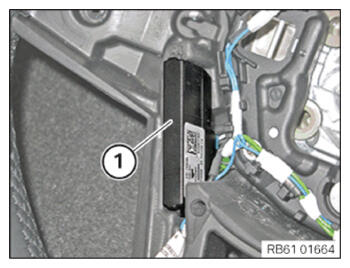

• Install control unit (1) in the steering wheel.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DECORATIVE TRIM FOR THE M SPORT STEERING WHEEL (SA710) .
• Refer to INSTALLING THE DECORATIVE TRIM FOR THE SPORTS STEERING WHEEL (SA255) .
• Refer to INSTALLING THE AIRBAG UNIT (M SPORT STEERING WHEEL) .
• Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
