Remove the front seat module (SMFA)

Preliminary work

• Refer to REMOVING DRIVER'S SEAT .

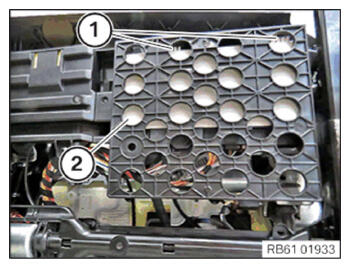

• Unlock the retaining lugs (1).
• Pull the SMFA control unit (2) forward.

  Courtesy of BMW OF NORTH AMERICA, INC.

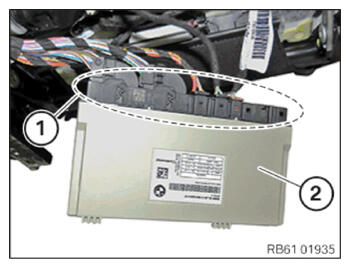

• Unlock and disconnect connector (1).
• Remove the SMFA control unit (2) from the holder.

Courtesy of BMW OF NORTH AMERICA, INC.
