Install the front seat module (SMFA)

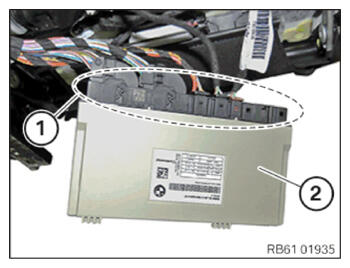

• Connect plug (1).
• Position the SMFA control unit (2) in the holder.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Press the SMFA control unit (2) into the holder until the retaining lugs (1) engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING DRIVER'S SEAT .
