Install fanfare horn, right
NOTE:
Description is for left component only. Procedure on the right side is identical.

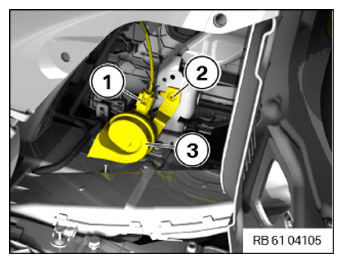

Installing the fanfare horn
- Position the fanfare horn (3) and bracket, then fasten with a blind rivet (2).
- Connect connectors (1) and lock.

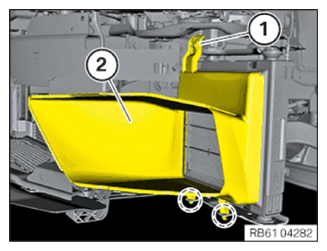

If installed: Installing the air duct for the radiator
- Position air duct (2) correctly into the guides.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Air duct to radiator | ||
|---|---|---|
| Screw | tightening torque | 3 Nm |
Follow-up work
- Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
