Removing shift paddle for automatic transmission

WARNING: Pyrotechnic components .
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

WARNING: Airbag unit .
Danger! Immobilization period-threatening injuries!

Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

NOTE: TECHNICAL INFORMATION
After replacing the airbag unit (M Sport steering wheel) or possibly converting the standard steering wheel and airbag unit on the M Sport steering wheel, a software update or a programming/coding via ISTA must be performed.

NOTE: TECHNICAL INFORMATION
The steering wheel and horn plate must be replaced if the airbag unit has been deployed.
Check all steering wheel attachments (such as switches, cover, shift paddles, wiring harness) for damage and replace if necessary!
For additional information see: PROCEDURE AFTER AIRBAG DEPLOYMENT AS RESULT OF AN ACCIDENT .

Preliminary work

Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .

NOTE: Description is for left component only. Procedure on the right side is identical.

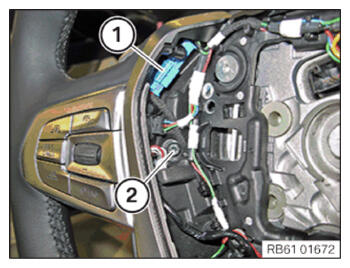

Disconnect connector (1) and remove cable to shift paddle.
Loosen screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

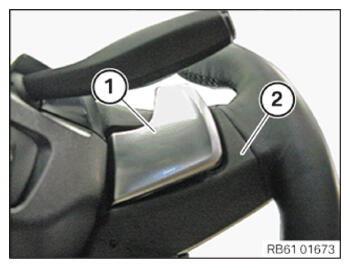

Remove shift paddle (1) from steering wheel (2) and remove associated access line.

Courtesy of BMW OF NORTH AMERICA, INC.
