Removing the switch for the convertible top operation
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to REMOVING CENTER ARMREST .
- Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
- Refer to REMOVING CUP HOLDER .
- Refer to REMOVING THE WIRELESS CHARGING STORAGE .
- Refer to REMOVING THE CENTER STACK MODULE .
- Refer to REMOVING CENTER FRESH AIR GRILLE WITH INTEGRATED AIR CONDITIONING CONTROL UNIT .
- Refer to REMOVING DECORATIVE TRIM ON CENTER CONSOLE .

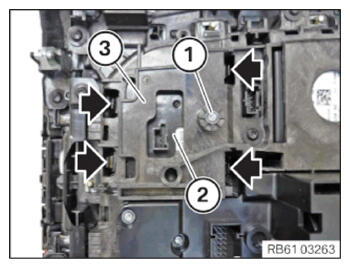

- Loosen screw (1) .
- Release latch mechanisms (arrows).
- Remove the switch for the convertible top operation (2) from the selector lever (3) .
