General Electrical System -- Repair (G14, G15, & G16)
>>
61 31 Switches
>>
61 31 037 Removing and installing/replacing light control unit
>>
Installing the light operating unit
Installing the light operating unit

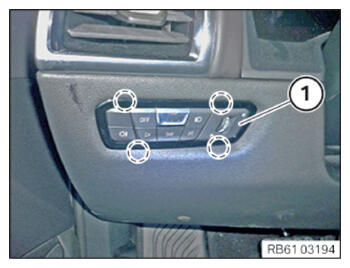

Connect the associated connector to the light operating unit (1).
Position the light operating unit (1) correctly and clip in at the marked points.
