Installing the coil spring cassette

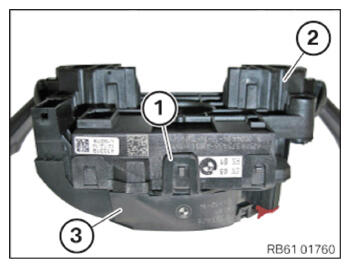

• Clip the coil spring cassette (3) onto the steering column switch cluster (SZL) (2).
• Check the central detent (1) on the steering column switch cluster (SZL) (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

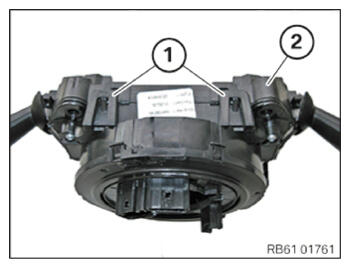

• Check both detents (1) on the steering column switch cluster (SZL) (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
• Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING THE STEERING WHEEL (SPORTS STEERING WHEEL) .
• Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to CHECKING THE AIRBAG FOR FUNCTION .
