Removing the 12V dual storage system
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING WINDSHIELD PANEL COVER .
- Refer to REMOVING TRAILING LINK AT SPRING BOLT .
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

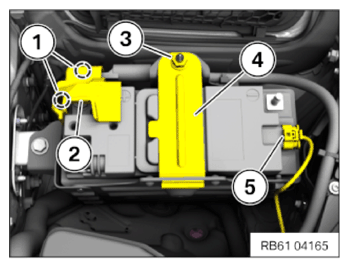

- Loosen the detents (1).
- Remove the positive terminal cover (2).
- Loosen nut (3).
- Remove battery rollover protection bracket (4).
- Unlock plug connection (5) and disconnect.

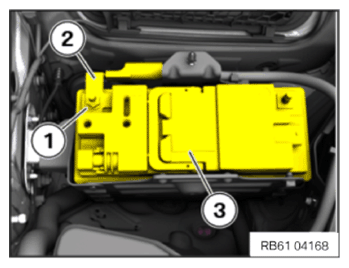

- Loosen nut (1).
- Detach the positive battery cable (2) from the positive battery terminal and secure laterally.WARNING: Unprotected battery terminals .
Risk of short circuits! Risk of fire!- Cover the vehicle battery.
- Open the grab handle and remove the 12-V dual storage battery (3).
