Removing the low power distribution box

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE LOADING EDGE TRIM .
• Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .

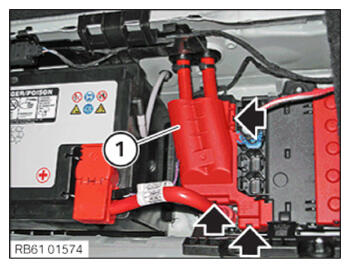

• Unclip the cover (1) at the detents.

  Courtesy of BMW OF NORTH AMERICA, INC.

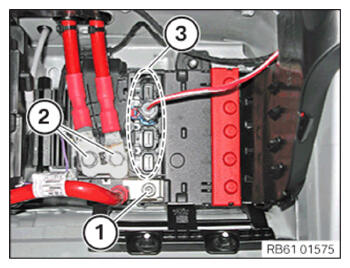

• Unfasten nut (1).
• Remove positive battery cable and secure at side.
• Loosen screws (2).
• Remove positive battery cables and secure at side.
• Unlock and disconnect all connectors (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

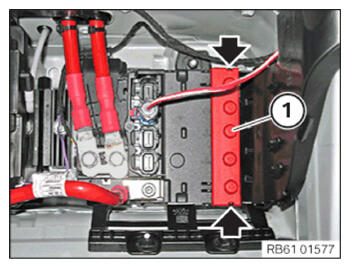

• Unclip the cover (1) at the detents.

  Courtesy of BMW OF NORTH AMERICA, INC.

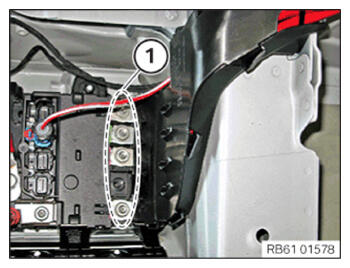

• Loosen all the nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

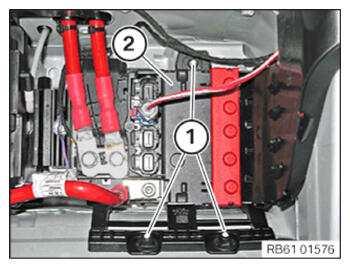

• Loosen plastic nuts (1).
• Remove the power distribution box (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

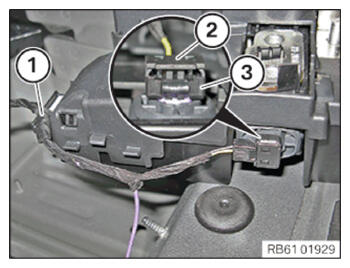

• Unclip cable with holder (1).
• Open lock (2) towards the top.
• Detach connectors (3).

Courtesy of BMW OF NORTH AMERICA, INC.
