6113... Inline plugs, 2-pin, System MPQ 2.8

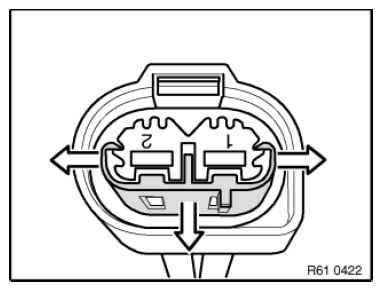

Press catch on outside in arrow direction and remove towards top.

G08509675Courtesy of BMW OF NORTH AMERICA, INC.

Press down snap-in hooks (1) with screwdriver and pull out cable and contact (2) towards rear.

G08509676Courtesy of BMW OF NORTH AMERICA, INC.
