6113... Circular connector, 13-pin, system D2.5

Special tools required:

• 61 0 303

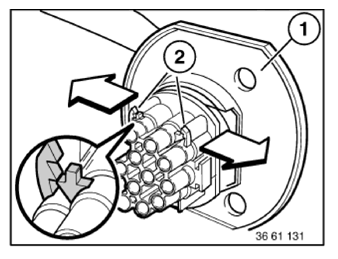

Detach rubber grommet (1).

Carefully pull out locking mechanism (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Shift lower section of connector (3) in arrow direction until retaining lugs (4) snap into release groove (5).

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 0 303  , press down retaining lugs (6) of corresponding contact and pull out cable.

Courtesy of BMW OF NORTH AMERICA, INC.
