Installing all ISOFIX cover caps

NOTE: The description is provided only at one component. The procedure is the same for all other components.

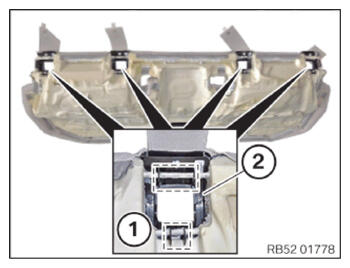

Position the ISOFIX cover caps (2) correctly in the marked areas and clip it into the rear seat (1).

Courtesy of BMW OF NORTH AMERICA, INC.

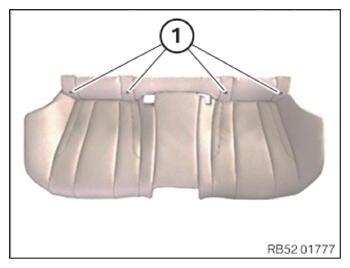

Attach the upholstery material to the ISOFIX cover caps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE REAR SEAT .
